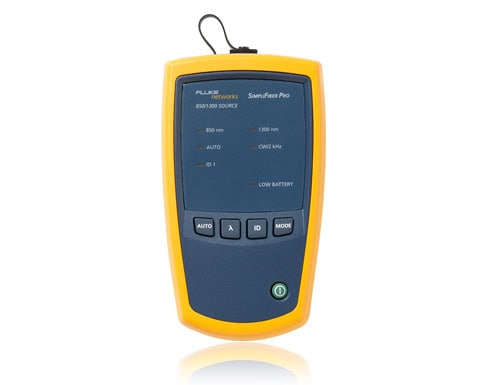

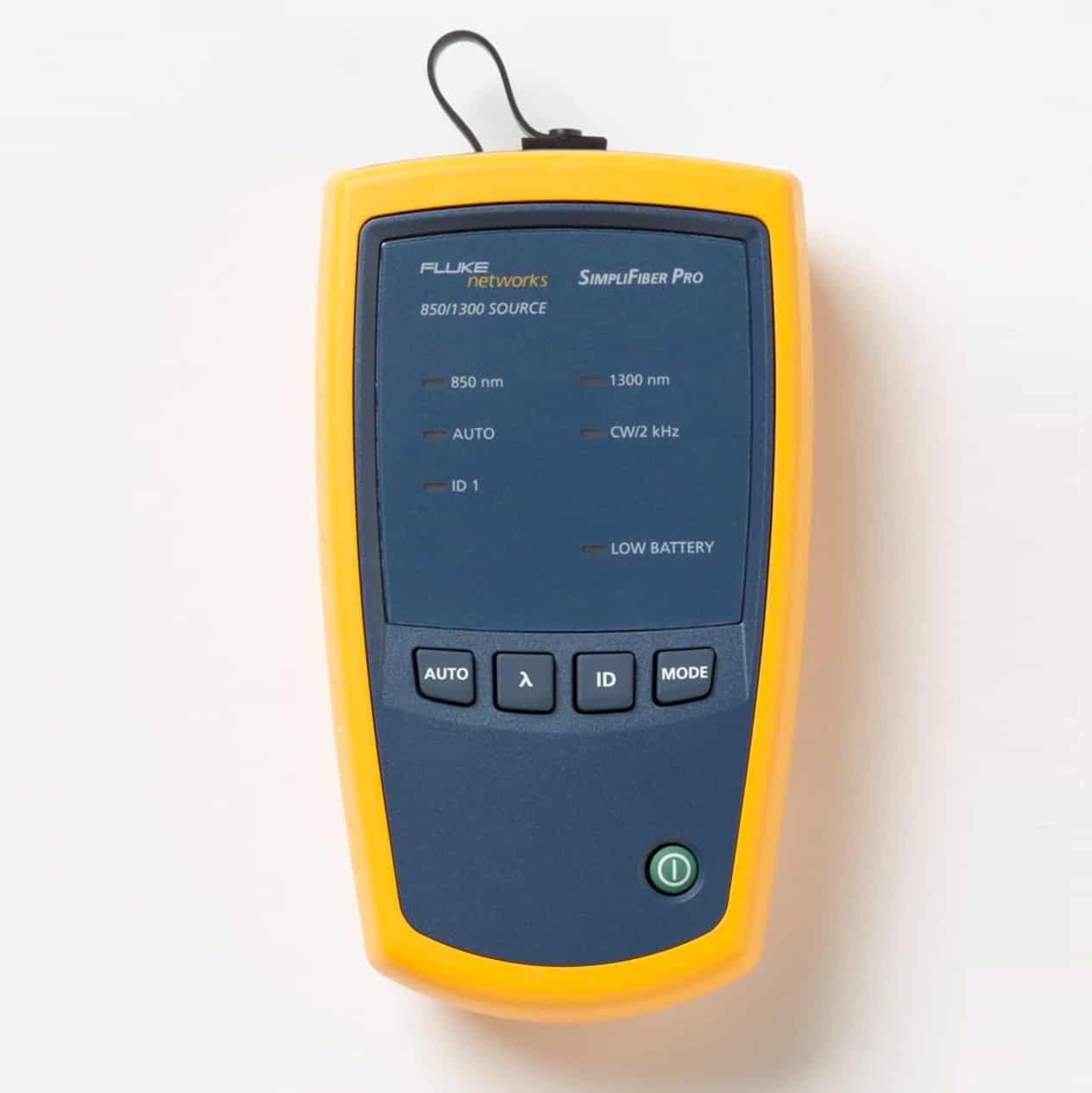

SimpliFiber Pro from Fluke Networks

Light Loss Tester

The SimpliFiber Pro Fibre Test Kits are simple to use fibre loss testers for testing your fibre optic cabling systems.

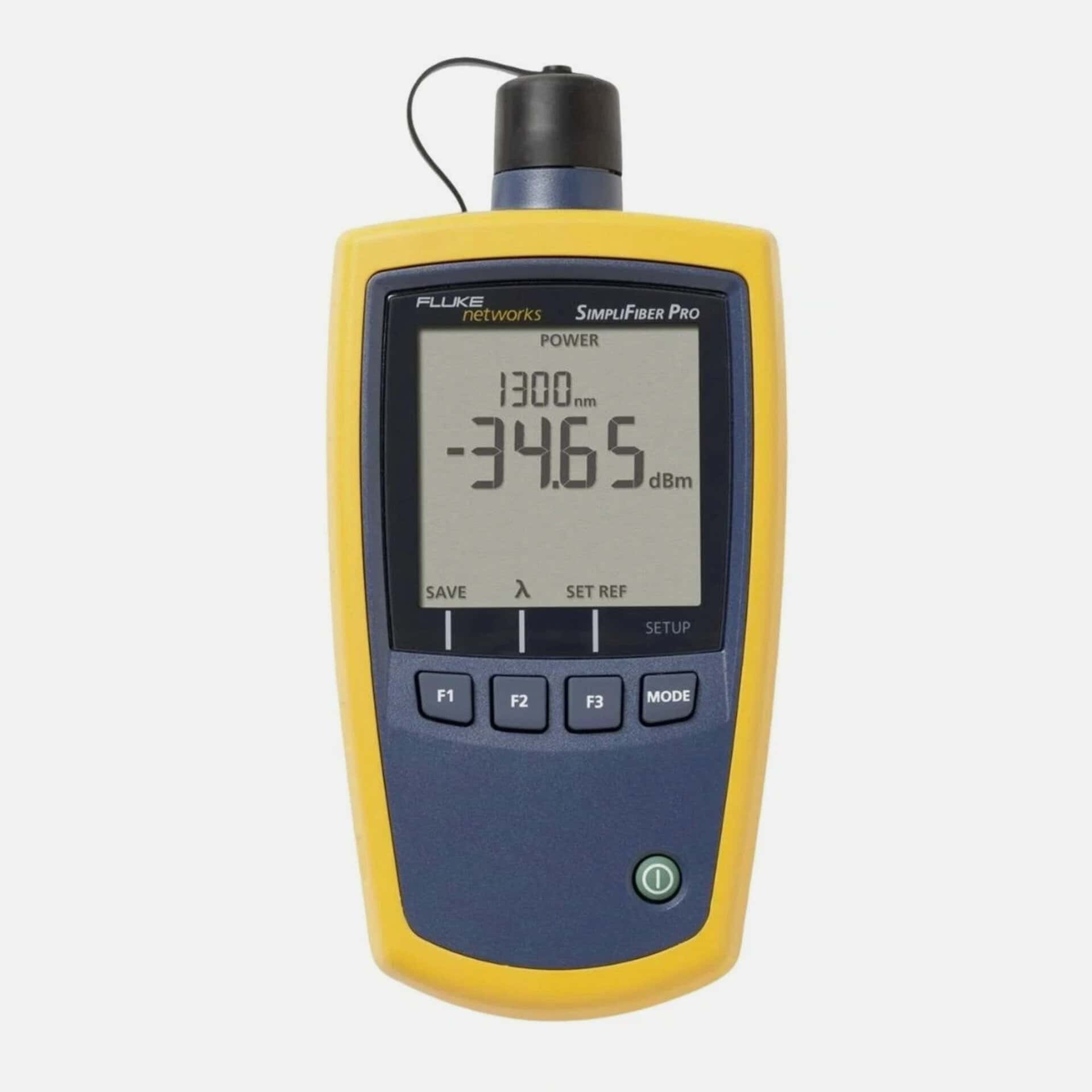

The meter features the ability to save a reference power level, allowing a direct display of fibre loss. It also has an intuitive four-button panel, a large LCD display screen and a serial port. The meter’s single connector permits simple network connection and straightforward reference power measurement. Interchangeable connector adapters are available in the most popular connector styles.

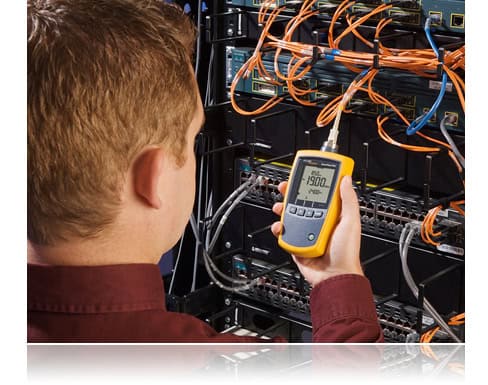

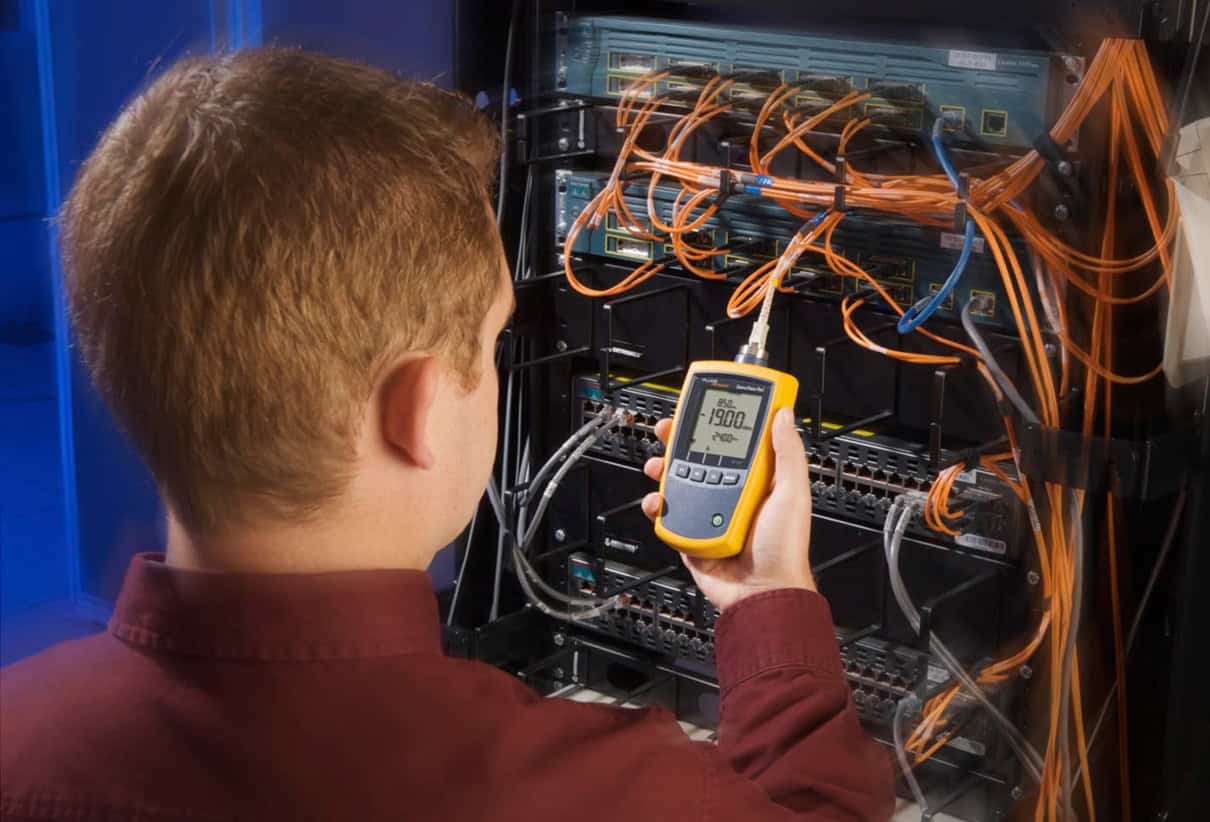

FindFiber™ Remote ID enables one individual to quickly identify cable connections or routings (especially useful at patch panels), eliminating the need for multiple technicians on opposite ends of a fibre link to match colour combinations.

Which model do I need?

SimpliFiber fibre test kits are available in both MultiMode and Single-Mode. Power and loss can be measured at 850, 1300, 1310, 1490, 1550 and 1625nm wavelengths.

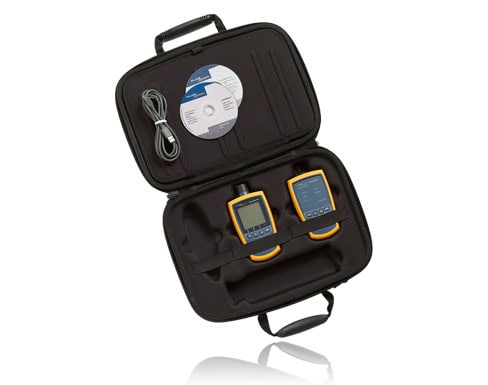

We recommend the FTK-1000 for MultiMode and the FTK-2000 for Single-Mode fibre.

In the Guides section of our website we also have more information on:

• The importance of Cleaning and Inspection
• The different types of fibre testers available

Additional Product Detail

• Single-port, simultaneous dual-wavelength feature completes testing in half the time and saves measurements from both wavelengths into one record
• Both multimode and singlemode fibre test kits available
• Measures optical power and loss at 850, 1300, 1310, 1490, 1550, 1625nm wavelengths
• FindFiber™ Remote ID enables one individual to quickly identify cable connections or routings (especially useful at patch panels), eliminating the need for multiple technicians on opposite ends of a fiber link to match color combinations
• Conduct pre-testing and qualify cabling runs
• Min/Max capability automates precision tracking of intermittent power fluctuations
• Auto-senses source wavelength
• Large internal memory save 1000 results which enables continuous testing and recording
• Single port testing for simple network connection
• Ruggedly built for demanding field use
• LinkWare™ Cable Test Management
• CheckActive™ feature emits an audible tone and displays an icon when a live fibre is detected, eliminating the need to set up a measurement
• Software documents, reports, and manages all test data
